What We Offer

E7 Studios provides fabrication-ready technical and shop drawings developed with real-world stone production in mind. Our drawings are created to reduce questions, prevent rework, and keep fabrication moving efficiently.

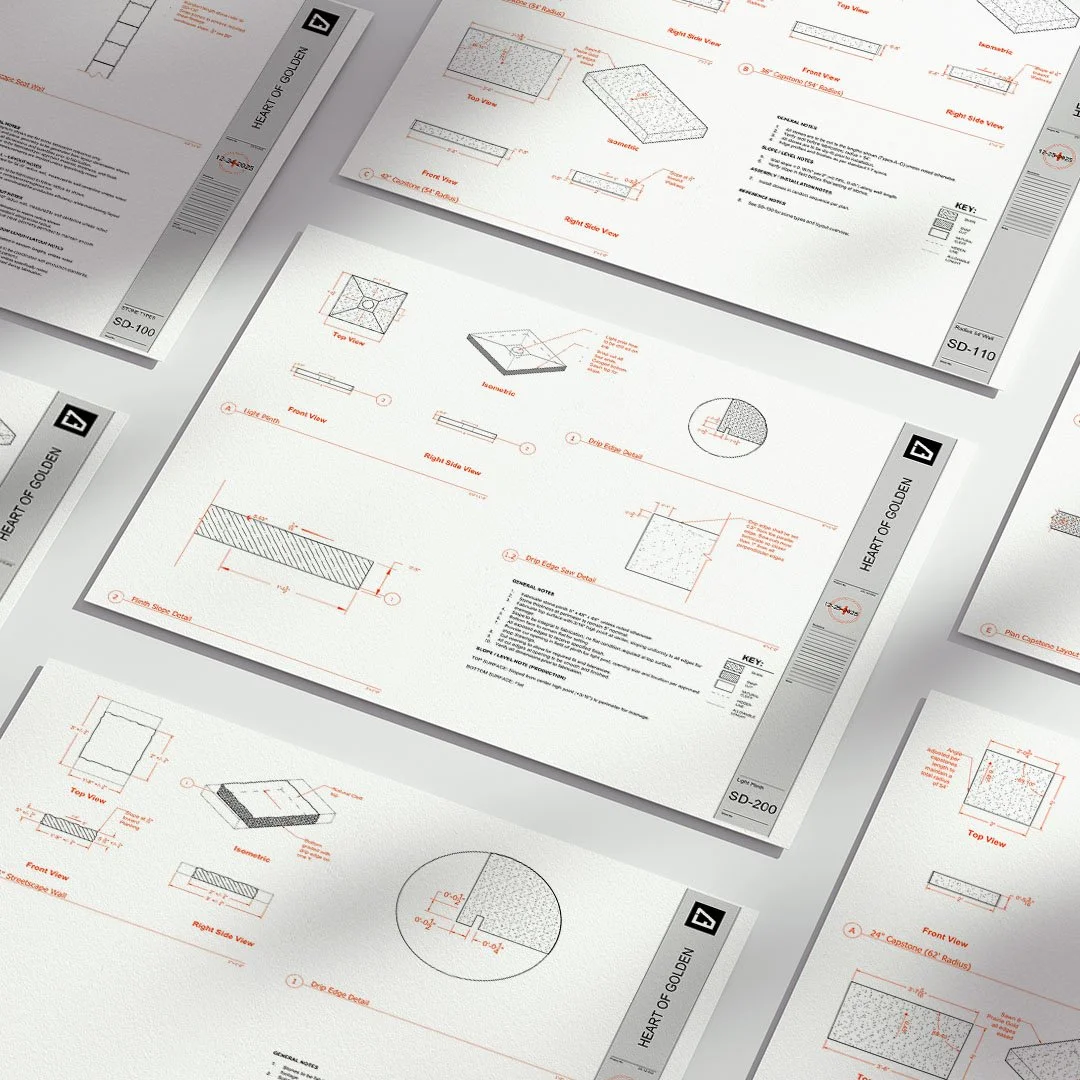

    • dimensioned shop drawings prepared for stone fabrication and installation

    • Clear plan, elevation, section, and detail sheets tailored to production needs

    • Geometry resolved for straight, radius, and compound conditions

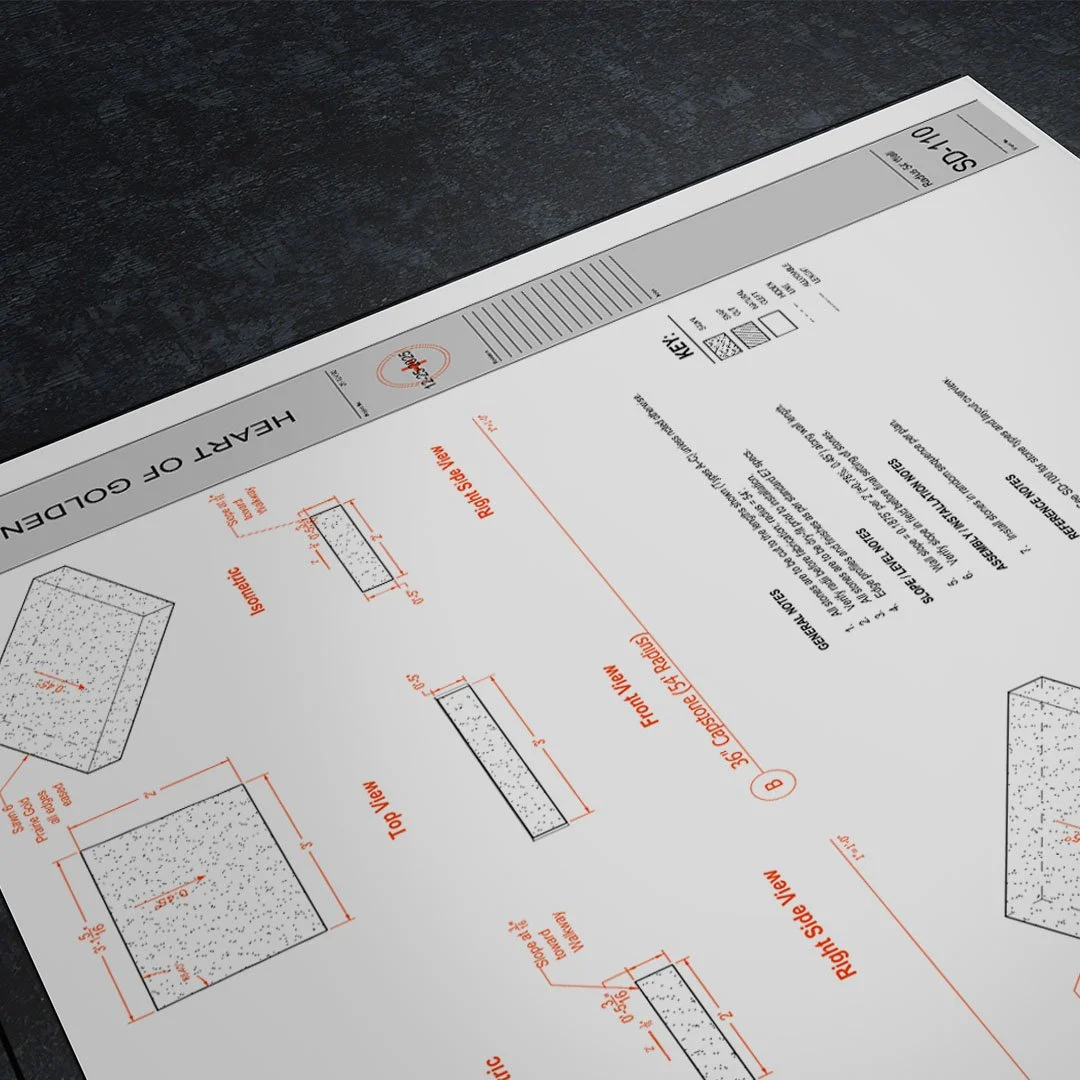

    • Capstones, wall caps, coping, steps, sills, and custom stone elements

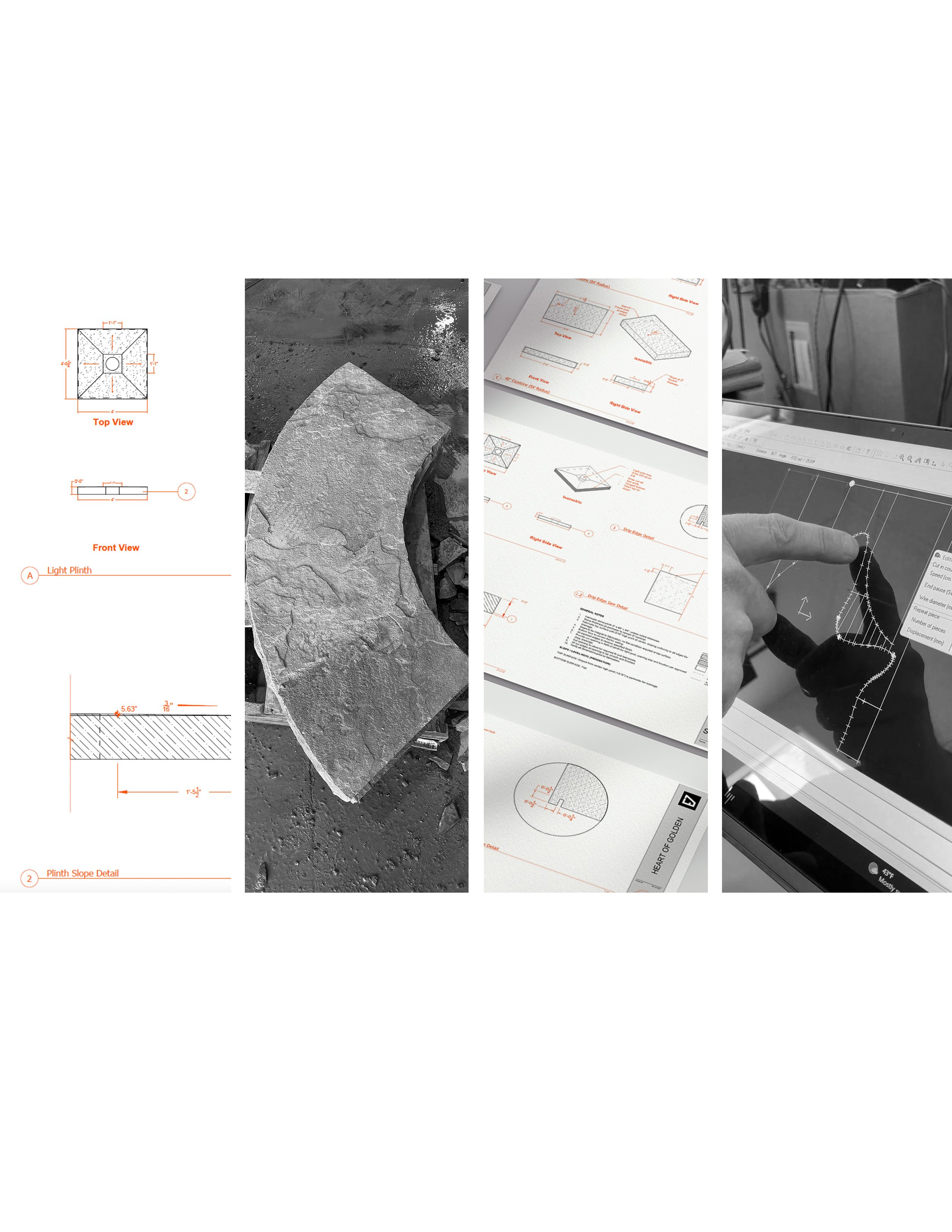

    • Radius and curved stone layouts with accurate segmentation and cut logic

    • Slope, pitch, and drainage detailing based on fabrication and installation realities

    • Piece-specific dimensions, lengths, and angles

    • Consistent labeling and numbering systems for shop and field coordination

    • Information organized to support CNC, saw cutting, or manual fabrication workflows
